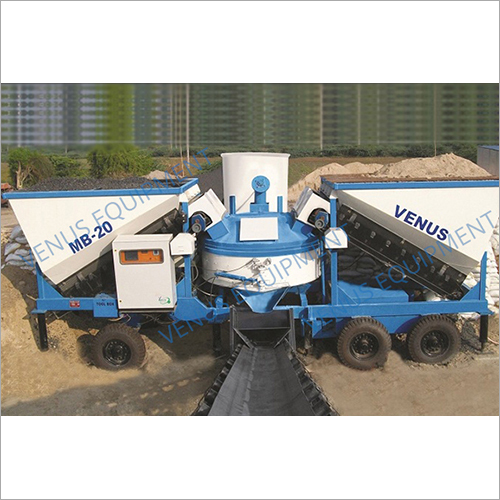

MB Series मोबाइल Type Concrete Batching Plant

Model

MB 15

MB 20

MB 25

Output capacity

15 M   Hr

20 M  Hr

25 M   Hr

Mixer type

Turbo pan type mixer with spring backed arms

Main reduction gear box

Imported planetary gear box

Main mixer drive

20 HP

30 HP

40 HP

Plant assembly

Whole plant assembly on single chassis

Material storage system

2 x 2 Cross bin feeder

Material storage capacity

10 M

12 M

14 M

Material weighing system

Digital load cell based weighing in central pan mixer

Cement feeding system

Through inclined screw conveyor

Water feeding system

Digital load cell based weighing of water in mixer

Water tank capacity

750 litre

1000 litre

1200 litre

Admixture dozing system

Auto admixture dozing system

Tyres

4 no

6 no

6 no

Tow bar facility

Yes

Yes

Yes

Control panel

PLC based control panel with internal cabling

Total connected power

57 HP

62 HP

83 HP

Suggested DG Set

62 KVA

82 KVA

100 KVA

Concrete discharge Height

1  2 Meter from the ground level
