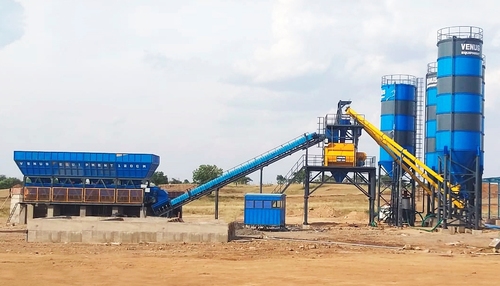

Being a well-acknowledged enterprise, we are immersed in bringing forth CP Series Stationary Concrete Batching Plant to widely spread honorable patrons. The offered batching plant is an ideal solution for mixing a bulk amount of concrete for varied construction applications. To design and fabricate said plant, our talented and sincere professionals use only quality approved components & parts and advanced technology so that it can perform constantly by consuming low power. Further, CP Series Stationary Concrete Batching Plant comes in different capacities, powers, models, and specifications at the market prices.
Specification
Model | CP 20 | CP 25 | CP 30 | CP 45 | CP 60 |
Output capacity | 20 M3/ Hr. | 25 M3/Hr. | 30 M3/Hr. | 45 M3/Hr. | 60 M3/Hr. |
Plant assembly | Whole assembly on single chassis | ||||
Mixer type | Turbo pan type mixer/ twin shaft mixer | ||||
Main reduction gear | Imported Planetary gear box | ||||
Main mixer drive | 20 HP | 25 HP | 30 HP | 40 HP | 50 HP |
Material storage system | 2 x 2 cross bin feeder | ||||
Material storage capacity | 14 M 3 | 14 M 3 | 20 M3 | 25 M3 | 30 M3 |
Material weighing system | Digital load cell based weighing system | ||||
Material feeding system | Through inclined belt conveyor | ||||
Cement feeding system | Through inclined screw conveyor | ||||
Water weighing system | Digital load cell based weighing of water in separate tank | ||||
Admixture dozing system | Digital load cell based auto admixture dozing system | ||||
Control panel | Fully automatic PLC based control panel | ||||
Control cabin | Provided | ||||
Concrete discharge height | 4.2 meter from ground level | ||||
Total connected power | 48 HP | 53 HP | 63 HP | 77 HP | 98 HP |
Suggested DG set | 62 KVA | 62 KVA | 82 KVA | 100 KVA | 125 KVA |
