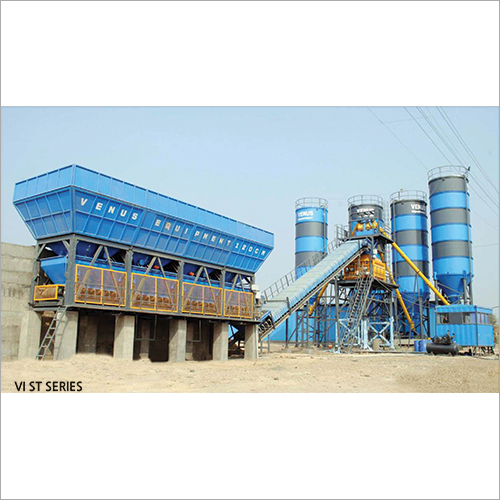

VI ST SERIES STATIONARY CONCRETE BATCHING PLANT
3600000.00 INR/Unit
Product Details:
- Product Type Stationary Concrete Batching Plant
- Material Other
- Type Concrete Mixing Plant
- Automatic Yes
- Control System PLC Control
- Power Consumption 52-275 Horsepower (HP)
- Storage Capacity 20-100 Cubic Meter (m3)
- Click to View more
X
VI ST SERIES STATIONARY CONCRETE BATCHING PLANT Price And Quantity
- 1 Unit
- 3600000.00 INR/Unit
VI ST SERIES STATIONARY CONCRETE BATCHING PLANT Product Specifications
- Yes
- Stationary Concrete Batching Plant
- Other
- Good Quality High Efficiency High Speed Low Energy Consumption
- Concrete Mixing Plant
- 20-100 Cubic Meter (m3)
- 52-275 Horsepower (HP)
- Blue
- PLC Control
VI ST SERIES STATIONARY CONCRETE BATCHING PLANT Trade Information
- 2 Unit Per Month
- 1 Week
- All India
Product Description
Vi St Series Stationary Concrete Batching Plant we propose is designed to be employed for mixing harsh & semi-dry concrete, concrete mixture, fluidity concrete, and no-slump concrete of varied ratio forcibly and mechanically. Suitable for construction sites, the plant performs efficiently and constantly by consuming low energy since it is designed and made of graded components & parts with latest technologies. Easy to operate, simple to maintain, cost-effective, and durable, Vi St Series Stationary Concrete Batching Plant can be availed in different capacities, sizes and specifications at competitive prices.
Technical Specification:
|
Model |
VI ST 20 |
VI ST 30 |
VI ST 45 |
VI ST 60 |
VI ST 75 |
VI ST 90 |
VI ST 120 |
|
Output capacity |
20 M3 / Hr. |
30 M3/ Hr. |
45 M3/ Hr. |
60 M3/ Hr. |
75 M3/ Hr. |
90 M3/ Hr. |
120 M3/ Hr |
|
Mixer unit |
Turbo pan mixer/ twin shaft mixer |
||||||
|
Main mixer reduction gear box |
Imported planetary reduction gear |
||||||
|
Main drive/ electrical motor |
20 HP |
30 HP |
40 Hp |
60 HP |
60 HP |
50 HPx2 nos |
75 HPx2 nos |
|
Material storage unit |
2x2 cross bin |
In line four bin feeder |
|||||
|
Material storage capacity |
20 M3 |
30 M3 |
40 M3 |
60 M3 |
60 M3 |
90 M3 |
100 M3 |
|
Material weighing system |
Digital load cell based weighing of material |
||||||
|
Batch feeding system |
Through inclined belt conveyor/inclined skip bucket |
||||||
|
Cement feeding system |
Through screw conveyor |
||||||
|
Water weighing system |
Digital load cell based weighing of water in separate tank |
||||||
|
Ad mixture dozing system |
Digital load cell based auto admixture dozing system |
||||||
|
Control panel |
Fully automatic PLC based control panel |
||||||
|
Control cabin |
Provided |
||||||
|
Concrete discharge height from G.I. |
4.0 meter from the ground level |
||||||
|
Total connected power ( HP ) |
52 HP |
74 HP |
87 HP |
120 HP |
145 HP |
200 HP |
275 HP |
|
Suggested DG Set |
62 KVA |
82 KVA |
125 KVA |
160 KVA |
200 KVA |
300 KVA |
400 KVA
|
